Introduction

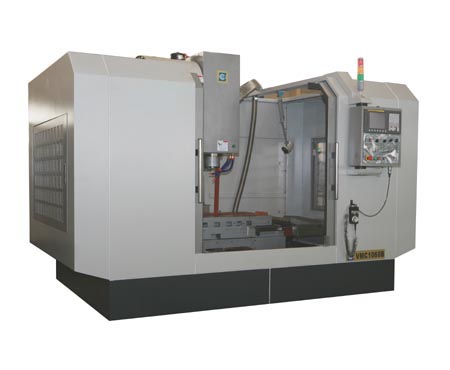

Rectangular hardened sliding ways are applied in X-axis, Y-axis and Z-axis. The machine has high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque and wide machining range. This series machines are designed for milling, drilling, reaming, boring, tapping, and counter boring/sinking valve type workpieces, cams, moulds/dies, chuck type workpieces, and case type workpieces used in automobile industry, motor cycle industry, machinery manufacturing, sewing machine industry, motor industry, and instrument industry, especially those in complex shapes like 2-dimension or 3-dimension concave/convex moulds and cavities. The machine is either suitable for multi-product small/medium patch production or mass production when fitted to a production line. Use of the said machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity.
Specifications
|
Data |
Unit |
VMC1060B |
VMC1270 |
|
Table |
Area of table (W×L) |
mm |
600×1300 |
700×1360 |
|
T-slot (quantity-size × space) |
mm |
5-18×120 |
5-18×152.5 |
|
Admissible load |
kg |
800 |
1000 |
|
Spindle |
Spindle thru-hole |
/ |
ISO 40 |
ISO 50 |
|
Spindle motor(cont./15min overload) |
kW |
7.5/11 |
11/15 |
|
Max. spindle speed |
r/min |
8000 |
7000 |
|
Stroke |
X-axis right and left stroke |
mm |
1000 |
1200 |
|
Y-axis back and forth stroke |
mm |
600 |
700 |
|
Z-axis up and down stroke |
mm |
600 |
600 |
|
Distance of spindle nose to table face |
mm |
180-780 |
150-750 |
|
Distance of spindle center to column way |
mm |
655 |
785 |
|
Feed |
X/Y-axis rapid traverse |
m/min |
20 |
20 |
|
Z-axis rapid traverse |
m/min |
15 |
15 |
|
Max feedrate |
mm/min |
10000 |
10000 |
|
Magazine |
Capacity of tool magazine |
pcs |
16/20/24 |
16/20/24 |
|
Max tool weight |
kg |
8 |
8 |
|
Accuracy |
Positioning (JIS) |
mm |
±0.008 |
±0.008 |
|
Repeatability (JIS) |
mm |
±0.003 |
±0.003 |
|
Others |
Air source |
L/min |
250 |
250 |
|
Air pressure |
MPa |
0.6 |
0.6 |
|
Machine gross weight |
kg |
9000 |
9500 |
|
Machine net weight |
kg |
8500 |
9000 | |
