SEPCIFICATIONS:

Range of hole diameter to  be bored  :  40-160mm

Range of hole diameter to be gimded:  50-160

range of 2rod hole centers distance 250-650mm

longitudinal travel of worktable  450mm

Boring head motor  0.55/0.75kW

Grinding head rotation/ revolution motor   0.55/0.37kW

Hydranlic system motor   0.55kW

Outline dimension (L*W*H)  1700*1300*1800

Net weight  1200kg

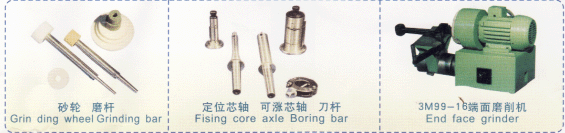

ACCESSORIES

Boring bar diameter  24,40

Gringding bar long   240,260

Expandable fixing core axle     32-160

grinding wheel    45-155

End face grinder machine   3M99-16

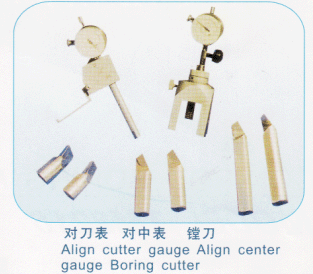

Align center gauge 1(set)

Align center gauge 1(set)

Boring cutter mieroadjusting device  1(set)
