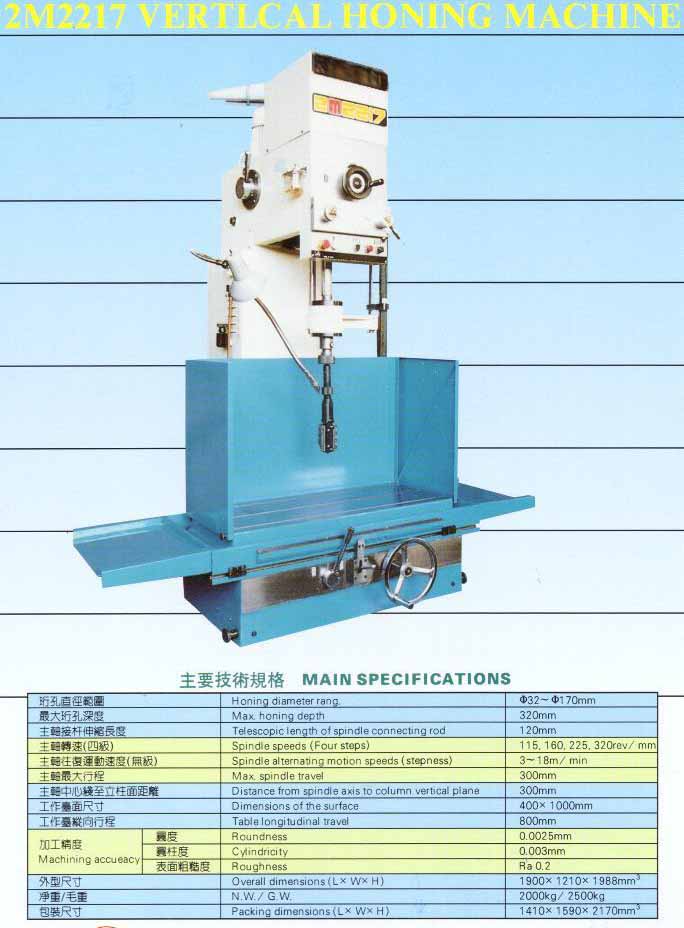

Features:
The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.
Advanccd-design and steady function;
Stepless of spindle turning feeding;
Specifications:
| Honing diameter range |
|
Ф40～Ф170mm |
| max.honing depth |
|
320mm |
| Telescopic length of spindle connecting rod |
|
120mm |
| Spindle speeds(four steps) |
|
115,160,225,320rev/mm |
| Spindle alternating motion speed(stepness) |
|
3～18m/min |
| Max.spindle travel |
|
300mm |
| Distance from spindle axis to column vertical plane |
|
300mm |
| Dimensions of the surface |
|
400x1000mm |
| Table longitudinal travel |
|
800mm |
| Machining accuracy |
Dimension accuracy |
0.0025mm |
| Roundness |
0.003mm |
| roughness |
Ra0.2 |
| Overall Dimensions(LxWxH) |
|
1900x1210x1988mm3 |
| N.W./G.W. |
|
2000kg/2500kg |
| Paking Dimensions（LxWxH） |
|
1410x1590x2170mm3 |
